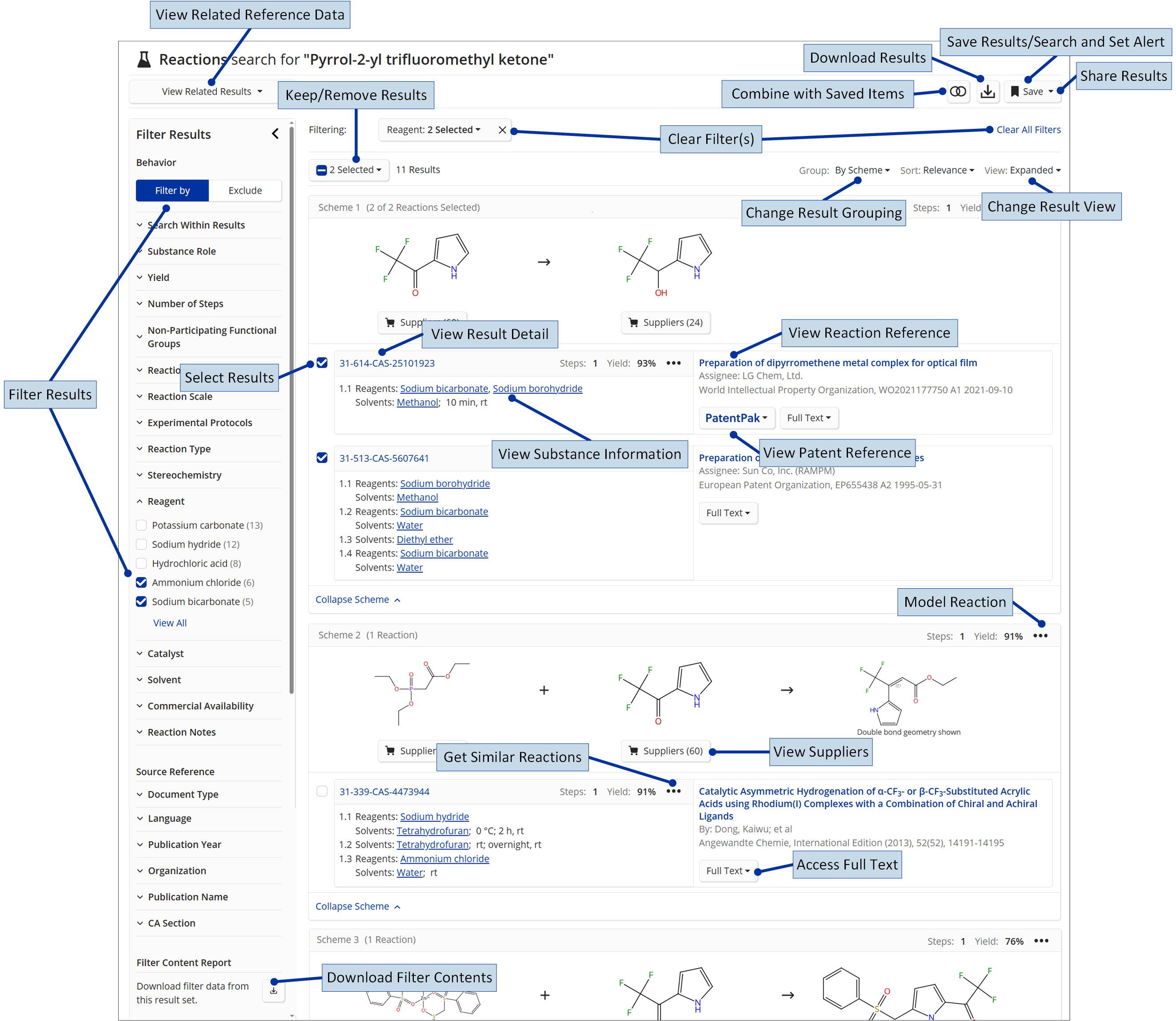

Reaction Results Overview

Access full-text options.

Group reactions by scheme, document, or transformation.

When grouping reactions by document, view expanded or collapsed results.

Click the X to clear an individual filter or Clear All Filters. Multiple filters of the same category appear under a drop-down menu.

Combine results with a saved results and searches.

Download the contents (name and number value) for all or applied filters as an .xlsx file.

Download results to a .pdf or .rtf file and result details to a .pdf or .rdf file. Note: PDF downloads include search task history.

Select filters and the Filter by or Exclude behavior to focus the result set.

Click the ellipsis (...) and select Get Similar Reactions to view reactions based on the similarity of adjacent atoms to the reaction center.

Type a page number and press Enter to go to that page.

Click the # Selected button to keep or remove selected results.

Click the ellipsis (...) and select Send to Structure Editor to populate the drawing tool with the reactant(s) and product(s) of the reaction with associated roles and reaction arrow.

Note: If the reaction is a ‘Product Only’ reaction, only the product will be modeled to the editor.

Click the Save button and then select Save and Alert to save selected results/search and create alert.

Check the box to select result(s) to keep/remove, save, email, or download.

Click the Save button and then select Share Results to share results via email.

Click the PatentPak button, and then click a PatentPak Option to view the patent reference.

View reaction reference's detail page.

Click the References button to view related reference results.

Note: Match highlighting does not carry over to related result sets and their downloads.

View reaction on the reaction result's detail page.

Click any structure image or name to open its substance window.

Click Suppliers to view a list of substance vendors.

Group by Document

View experimental protocols on the result's detail page.

Select the type of Structure Match.
